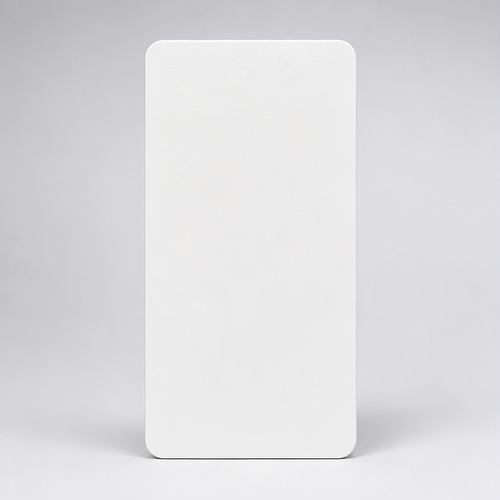

RAL 9016 Smooth Interior Powder Coating
EP0S-110047 · Traffic White · Epoxy
- GLOSS
- Matte 30-40GU
- Measured at 60°
- CURING
- 200°C × 10 min
- Based on object temperature
PRICE PER KG
- 1–300 kg
- on request
- 301–1,000 kg
- on request
- Over 1,000 kg
- on request
All prices are EXW. You pay product price + export charges + ocean freight.
- MOQ
- 100 kg
- LEAD TIME
- 3-7 working days
- PAYMENT TERMS
- T/T
- DELIVERY TERMS
- EXW
Product Overview
Description
EP0S is a pure epoxy smooth powder coating for high-corrosion-protection primers and high-build coating requirements. It can be applied by electrostatic spraying or fluidized-bed dip coating and can be built up through multiple coats. Through formulation adjustment, the minimum curing temperature can be reduced to 120°C; when used with a polyester topcoat, the system can meet ISO 12944-6 C4–C5 corrosion-protection categories.
Key Features
- Multiple gloss and colour effects available;
- chemical and corrosion resistance;
- good edge coverage; good compatibility with topcoats;
- good powder deposition and coverage.
Best Suited For
- Automotive functional components, such as brake pads, engines and springs;
- Corrosion protection of steel structures;
- Transformers;

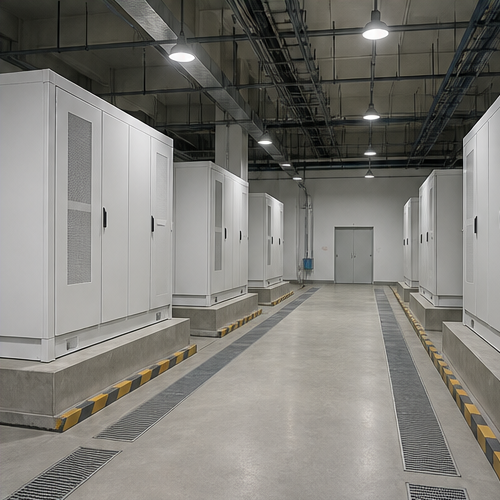

- Anticorrosive primers for outdoor construction machinery and energy-storage cabinets;
- Internal and external surfaces of metal pipelines;
- Metal structural components.
- Packaging
- 20kg or 25kg / box, in cardboard box lined with a polyethylene plastic bag
- Storage
- Store sealed below 25°C ,keep cool, dry, and away from sunlight.
- Shelf Life
- 6–12 months under the specified storage conditions in unopened packaging, depending on the product.
Appearance & Properties
| Parameter | Value |
|---|---|
| Chemistry | Epoxy |
| Color Values | LAB: 95.27, -1.3, 1.65 RGB: 240, 242, 238 |
| Gloss at 60° | Smooth dead matt: 5–10 GU; smooth matt: 30–40 GU; smooth medium gloss: 40–80 GU; smooth high gloss: 80–95 GU. |
| Specific Gravity | 1.5–2.3 g/cm³, depending on colour and product design requirements. |
| Particle Size D50 | D₅₀: 30–45 μm; adjustable according to the coating application and product design. |
| Film Thickness | 60–500 μm; the application method and coating thickness shall be agreed according to the design requirements. |
Application & Processing
| Parameter | Value |
|---|---|
| Curing Conditions | 200°C × 10 min (object temperature); low-temperature-curing products down to 120°C can be customised. |
| Application Guidelines | Suitable for manual or automatic electrostatic spray application. Other application methods, such as triboelectric spraying or electrostatic fluidized bed coating, shall be specified in advance. |
Performance Test Results
| Test | Result | Standard |
|---|---|---|
| Initial adhesion | Pass, GT0 | ISO 2409:2020 |
| Impact resistance | 50 kg·cm, no coating detachment under direct impact (except low-gloss products). | GB/T 1732 |
| Hardness | ≥H | ISO 15184:2020 |
| Single-layer epoxy coating, NSS (1000 h) | C2–C4 corrosion protection | ISO 9227 |
| Cupping test | ≥5 mm, no visible cracking | ISO 1520:2006 |
| Compatible topcoat system | C4–C5 corrosion protection category | ISO 12944-6 |
| 85°C / 85% RH test | 1000 h | 85°C/85%RH |
| Durability | When used as a primer with a polyester topcoat, up to 15 years of outdoor durability. | — |
