Construction and heavy machinery includes excavators, loaders, lifting equipment, forklifts and agricultural machinery. These machines face UV exposure, rain, mud, oil, chemicals and mechanical impact. Welded, complex and heavy structures require a balance of weatherability, corrosion protection, adhesion and mechanical performance.
Heavy sections may not reach the required metal temperature even when oven air temperature is correct, causing under-cure. Welds, sharp edges, deep recesses and shielded areas may have insufficient film build. Castings and hot-dip-galvanised parts can develop bubbles or pinholes if not fully degassed. Primer-topcoat systems also require controlled intercoat cure and recoat adhesion.
Heavy-machinery coatings are moving toward higher corrosion classes, longer outdoor service life and lower curing temperatures. Future systems will place greater emphasis on primer-topcoat design, edge protection, curing control for heavy parts and total lifecycle cost.
Shandong Luyu Heavy Industry, a leading global manufacturer of compact excavators and loaders, exports to more than 70 countries.

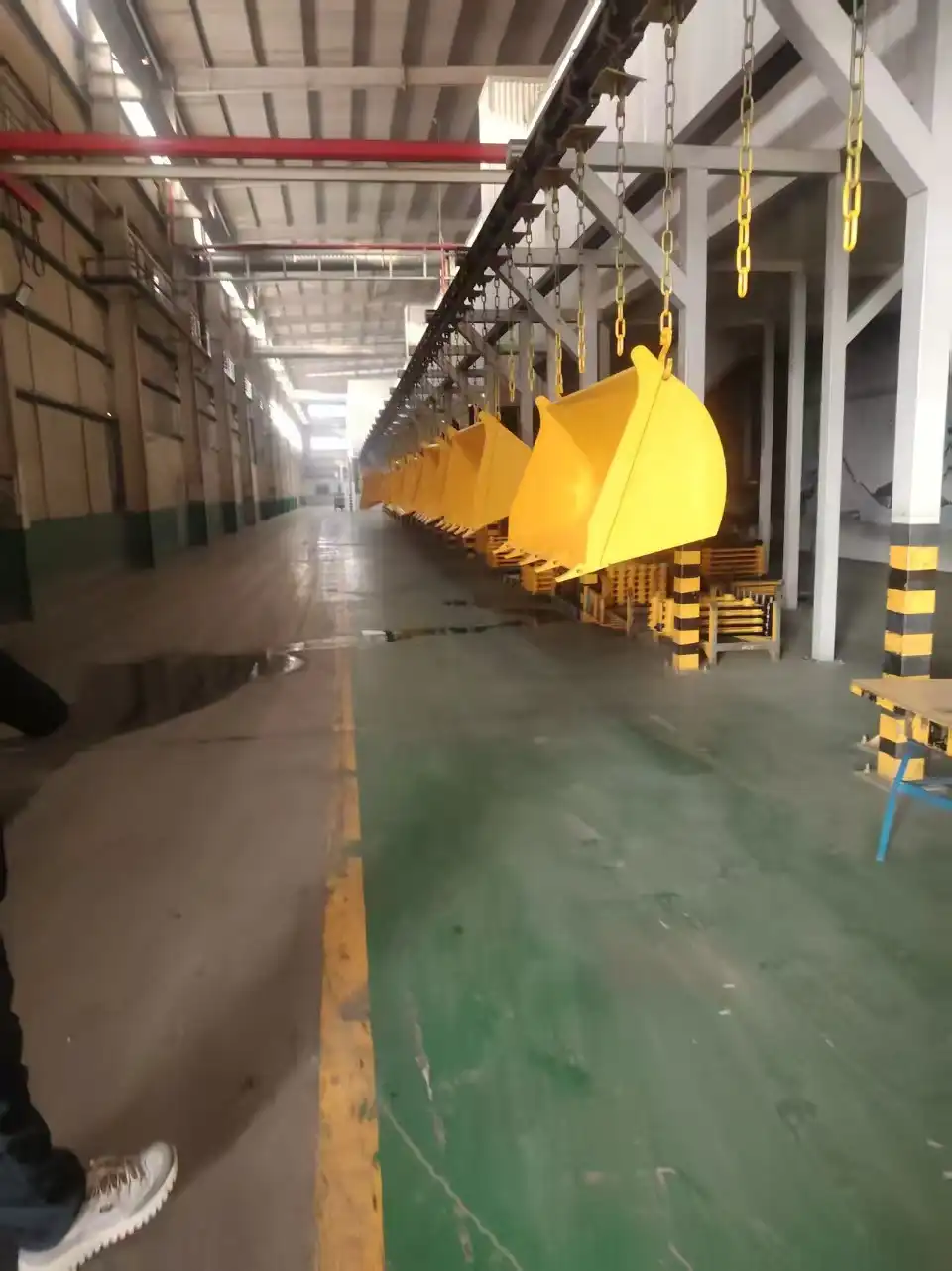

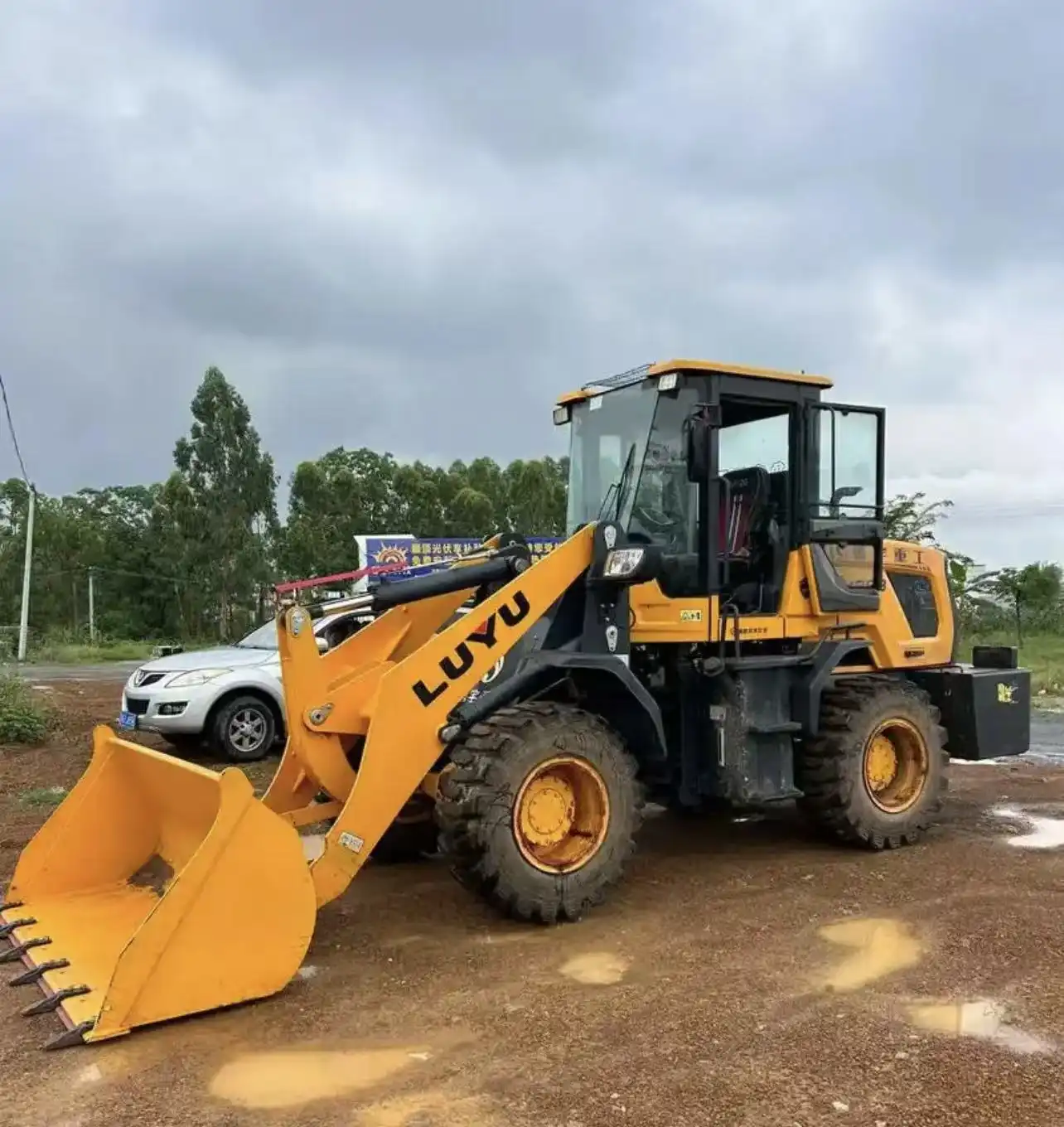

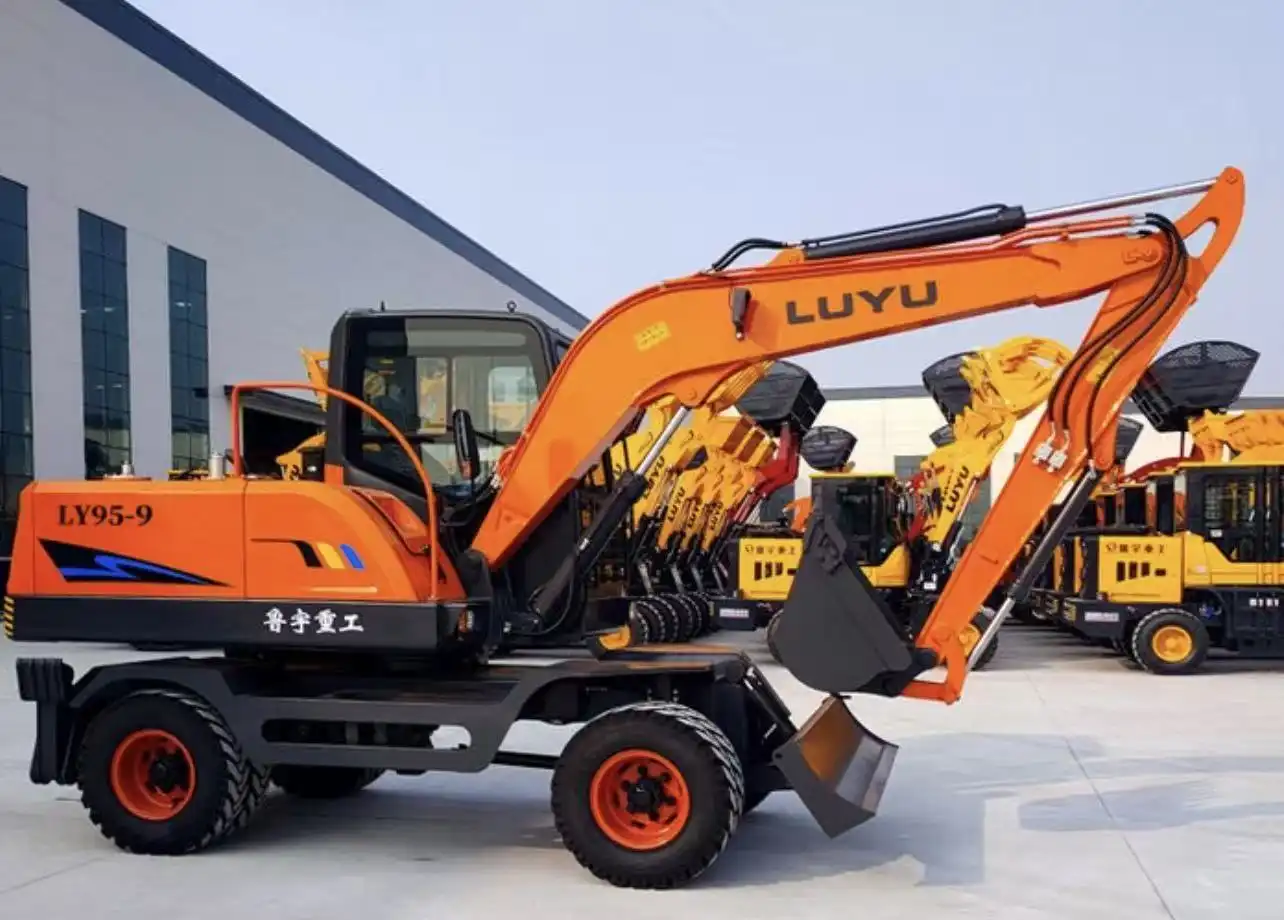

Compact excavators and loaders, mainly in orange, yellow and selected green safety colors, using solid-color high-gloss smooth finishes.
Supply has continued since March 2025, with monthly consumption of 50–80 tonnes and zero complaints. General industrial polyester-TGIC systems are used for domestic and non-European markets, while polyester-HAA systems are used for products exported to Europe.
Reduce curing energy consumption
Curing temperature of 150–160°C
High-gloss smooth finish above 90 GU
Consistent, saturated safety colors
Adequate film build on sharp edges and corners to reduce corrosion risk
Stable low-temperature curing at 150–160°C
Approximately 20% lower energy use than conventional high-temperature exterior polyester
Gloss consistently above 90 GU through higher resin content and gloss-enhancing additives
Average film thickness on sharp edges above 50 μm
Monthly supply of 50–80 tonnes with zero complaints to date
Share your part mass, curing temperature, gloss target and sharp-edge protection requirements with our technical team.
