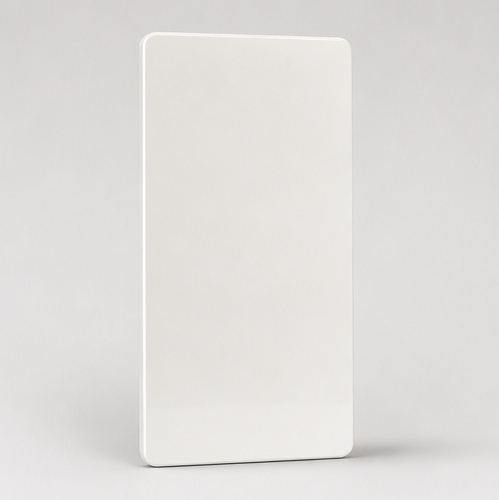

RAL 9010 Smooth Interior Powder Coating
HY0S-120137 · Pure White · Epoxy Polyester Hybrid
- GLOSS
- Semi-Gloss 40-80GU
- Measured at 60°
- CURING
- 200°C × 10 min
- Based on object temperature
PRICE PER KG
- 1–300 kg
- on request
- 301–1,000 kg
- on request
- Over 1,000 kg
- on request
All prices are EXW. You pay product price + export charges + ocean freight.
- MOQ
- 100 kg
- LEAD TIME
- 1-7 days
- PAYMENT TERMS
- T/T
- DELIVERY TERMS
- EXW
Product Overview
Description
HY0S is an epoxy/polyester hybrid smooth powder coating for indoor decorative-protective coating systems and cost-sensitive applications. It combines smooth surface appearance, chemical resistance and process adaptability across a broad gloss range, supporting efficient line setup under suitable coating conditions.
Key Features
- Multiple gloss and colour effects available;
- good chemical and corrosion resistance;
- good smoothness and decorative appearance;
- good powder application and coverage; cost-control advantages.
Best Suited For
- Furniture and appliances;
- Exercise equipment;
- Office desks and chairs;
- Indoor metal shelving;

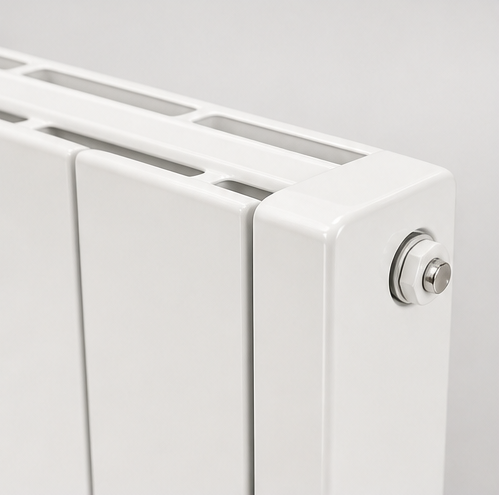

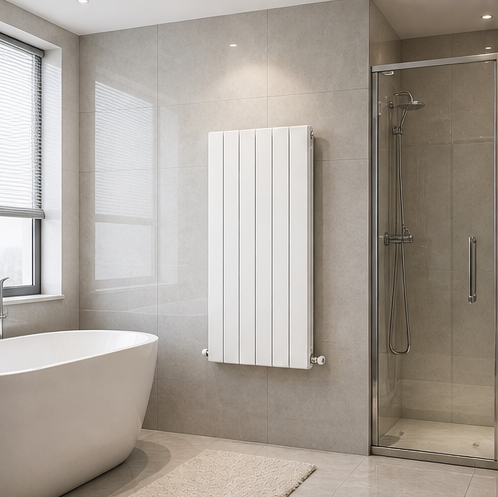

- Radiators; automotive functional components such as springs, brake pads and filters.
- Packaging
- 20kg or 25kg / box, in cardboard box lined with a polyethylene plastic bag
- Storage
- Store sealed below 25°C ,keep cool, dry, and away from sunlight.
- Shelf Life
- 6–12 months under the specified storage conditions in unopened packaging. The actual product specification shall apply.
Appearance & Properties
| Parameter | Value |
|---|---|
| Chemistry | Epoxy Polyester Hybrid |
| Color Values | LAB: 94.96, -0.93, 5.18 RGB: 243, 241, 230 |
| Gloss at 60° | Smooth low gloss: 8–20 GU; smooth matt: 20–40 GU; smooth medium gloss: 40–80 GU; smooth high gloss: 80–95 GU |
| Specific Gravity | 1.2–1.8 g/cm³, depending on colour |
| Particle Size D50 | D₅₀: 30–45 μm; adjustable according to the coating application and product design |
| Film Thickness | 60–150 μm; higher film thicknesses require verification of pinholing and colour-difference stability |
Application & Processing
| Parameter | Value |
|---|---|
| Curing Conditions | 200°C × 10 min (workpiece temperature); low-temperature-curing products down to 150°C can be customized |
| Application Guidelines | Suitable for manual or automatic electrostatic spray application. Other application methods, such as tribostatic spraying or electrostatic fluidized-bed coating, must be specified in advance. |
Performance Test Results
| Test | Result | Standard |
|---|---|---|
| Initial Adhesion | Pass, GT0 | ISO 2409 |
| Impact Resistance | 50 Kg·cm without coating peeling (except for positive punching and low gloss products) | GB/T 1732 |
| Conical Bend | 5 mm, no visible cracking (except low-gloss products) | ISO 6860 |
| Cupping Test | ≥5 mm, no visible cracking | ISO 1520 |
| Humidity Resistance | 480 h, with no blistering, detachment or visible discolouration of the coating | ISO 6270-1 |
| Neutral Salt Spray Resistance | 1000 h, with no blistering, detachment or visible discolouration of the coating | ISO 9227 |
Documents
Available Documents
Technical Data SheetDownload
Safety Data SheetEnglish DownloadOther Languages Request
Batch COAIssued per batch and provided with shipment
