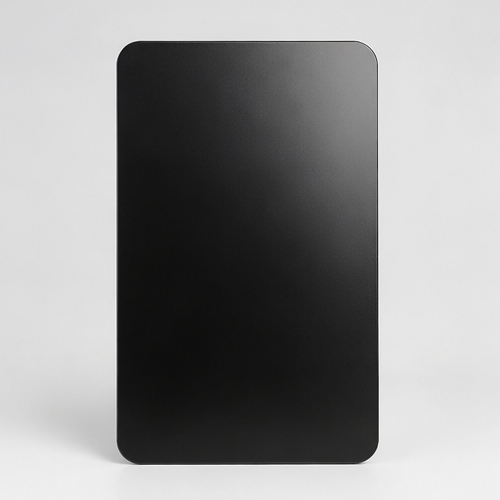

RAL 9005 Smooth Interior Powder Coating
EP0S-820045 · Jet Black · Epoxy
- GLOSS
- Semi-Gloss 40-80GU
- Measured at 60°
- CURING
- 200°C × 10 min
- Based on object temperature
PRICE PER KG
- 1–300 kg
- on request
- 301–1,000 kg
- on request
- Over 1,000 kg
- on request
All prices are EXW. You pay product price + export charges + ocean freight.
- MOQ
- 100 kg
- LEAD TIME
- 3-7 working days
- PAYMENT TERMS
- T/T
- DELIVERY TERMS
- EXW
Product Overview
Description
EP0S is a pure epoxy smooth powder coating for high-corrosion-protection primers and high-build coating requirements. It can be applied by electrostatic spraying or fluidized-bed dip coating and can be built up through multiple coats. Through formulation adjustment, the minimum curing temperature can be reduced to 120°C; when used with a polyester topcoat, the system can meet ISO 12944-6 C4–C5 corrosion-protection categories.
Key Features
- Multiple gloss and colour effects available;
- chemical and corrosion resistance;
- good edge coverage; good compatibility with topcoats;
- good powder deposition and coverage.
Best Suited For
- Automotive functional components, such as brake pads, engines and springs;
- Corrosion protection of steel structures;
- Transformers;

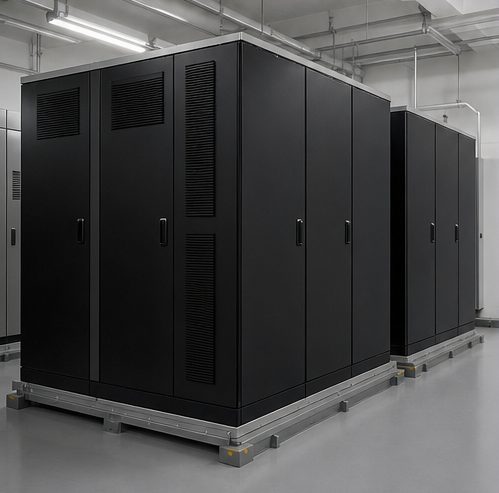

- Anticorrosive primers for outdoor construction machinery and energy-storage cabinets;
- Internal and external surfaces of metal pipelines;
- Metal structural components.
- Packaging
- 20kg or 25kg / box, in cardboard box lined with a polyethylene plastic bag
- Storage
- Store sealed below 25°C ,keep cool, dry, and away from sunlight.
- Shelf Life
- 6–12 months under the specified storage conditions in unopened packaging, depending on the product.
Appearance & Properties
| Parameter | Value |
|---|---|
| Chemistry | Epoxy |
| Color Values | LAB: 24.11, -0.09, -0.69 RGB: 57, 57, 58 |
| Gloss at 60° | Smooth dead matt: 5–10 GU; smooth matt: 30–40 GU; smooth medium gloss: 40–80 GU; smooth high gloss: 80–95 GU. |
| Specific Gravity | 1.5–2.3 g/cm³, depending on colour and product design requirements. |
| Particle Size D50 | D₅₀: 30–45 μm; adjustable according to the coating application and product design. |
| Film Thickness | 60–500 μm; the application method and coating thickness shall be agreed according to the design requirements. |
Application & Processing
| Parameter | Value |
|---|---|
| Curing Conditions | 200°C × 10 min (object temperature); low-temperature-curing products down to 120°C can be customised. |
| Application Guidelines | Suitable for manual or automatic electrostatic spray application. Other application methods, such as triboelectric spraying or electrostatic fluidized bed coating, shall be specified in advance. |
Performance Test Results
| Test | Result | Standard |
|---|---|---|
| Initial adhesion | Pass, GT0 | ISO 2409:2020 |
| Impact resistance | 50 kg·cm, no coating detachment under direct impact (except low-gloss products). | GB/T 1732 |
| Hardness | ≥H | ISO 15184:2020 |
| Single-layer epoxy coating, NSS (1000 h) | C2–C4 corrosion protection | ISO 9227 |
| Cupping test | ≥5 mm, no visible cracking | ISO 1520:2006 |
| Compatible topcoat system | C4–C5 corrosion protection category | ISO 12944-6 |
| 85°C / 85% RH test | 1000 h | 85°C/85%RH |
| Durability | When used as a primer with a polyester topcoat, up to 15 years of outdoor durability. | — |
Documents
Available Documents
Technical Data SheetDownload
Safety Data SheetEnglish DownloadOther Languages Request
Batch COAIssued per batch and provided with shipment
Technical Support
Not sure this product matches your line?
Discuss your substrate, pretreatment and curing conditions with our technical team.
Start a Conversation
