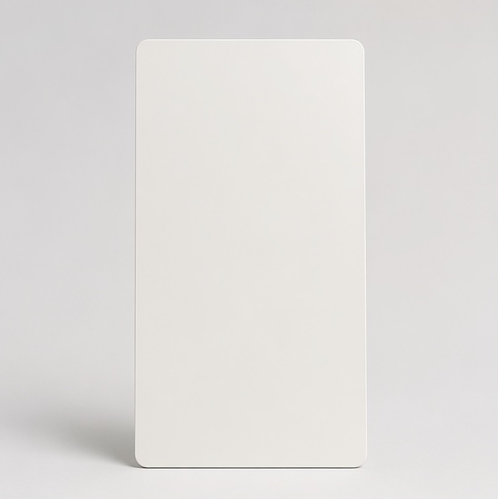

PT0S-110331 · Signal White · Polyester-TGIC
PRICE PER KG
All prices are EXW. You pay product price + export charges + ocean freight.
Description
PT0S is a polyester-TGIC smooth powder coating with a 1–5 year weathering durability rating, designed for general outdoor decorative and protective applications. It is suitable for relevant markets outside Europe. With formulation adjustments, the minimum curing temperature can be reduced to 140°C. Special applications such as food-contact use must be confirmed in advance during the project stage.
Key Features
Best Suited For
| Parameter | Value |
|---|---|
| Chemistry | Polyester-TGIC |
| Surface Effect | smooth matt |
| Color Values | LAB: 94.48, -0.56, 0.62 RGB: 239, 239, 238 |
| Gloss at 60° | 20–40 GU |
| Specific Gravity | 1.2–1.8 g/cm³, depending on the final product formulation |
| Particle Size D50 | D₅₀: 30–45 μm; adjustable according to the coating application and product design |
| Film Thickness | 60–120 μm; high-build application shall be verified before use |
| Parameter | Value |
|---|---|
| Curing Conditions | 200°C × 10 min (workpiece temperature); low-temperature-curing versions may reach a minimum curing temperature of 140°C |
| Application Guidelines | Suitable for manual or automatic electrostatic spray application. Other application methods, such as tribostatic spraying or electrostatic fluidised-bed coating, shall be specified in advance. |
| Test | Result | Standard |
|---|---|---|
| Initial Adhesion | Pass, Gt 0–1 | ISO 2409 |
| Impact Resistance | 50 Kg·cm without coating peeling (except for positive punching and low gloss products) | GB/T 1732 |
| Hardness | ≥H | ASTM D 3363 |
| Bending | 5 mm, no visible detachment (except low-gloss products) | ISO 1519 |
| Cupping Test | ≥5 mm, no visible cracking | ISO 1520 |
| Humidity Resistance Test (480 h) | No visible blistering or failure due to colour change | ISO 6270-1 |
| Xenon-Arc Weathering (500–800 h) | Gloss retention ≥50%; colour change within the specified limit | ISO 16474-2 |
| Neutral Salt Spray (800–1000 h) | No blistering, detachment or visible colour change | ISO 9227 |
Discuss your substrate, pretreatment and curing conditions with our technical team.
