RAL 9003 Fine texture Interior Powder Coating

HY0F-100101 · Signal White · Epoxy Polyester Hybrid

GLOSS: Ultra Matt ≤10 GU; Measured at 60°
CURING: 200°C × 10 min; Based on object temperature

PRICE PER KG

1–300 kg: on request
301–1,000 kg: on request
Over 1,000 kg: on request

All prices are EXW. You pay product price + export charges + ocean freight.

MOQ: 100 kg
LEAD TIME: 1-7 days
PAYMENT TERMS: T/T
DELIVERY TERMS: EXW

Product Overview

Description

HY0F is an epoxy/polyester hybrid interior textured powder coating positioned for low-gloss sand-textured appearance and hiding-oriented decorative coating. It combines chemical resistance, corrosion resistance, a three-dimensional matt appearance, hiding capability and coating yield. The curing temperature can be reduced to 150°C, making it suitable for interior coating programs requiring a sand-textured finish and rapid line setup.

Key Features

- Sand-textured decorative effect; - good chemical and corrosion resistance; - matt appearance with a pronounced three-dimensional effect; - good hiding capability; high coating yield.

Best Suited For

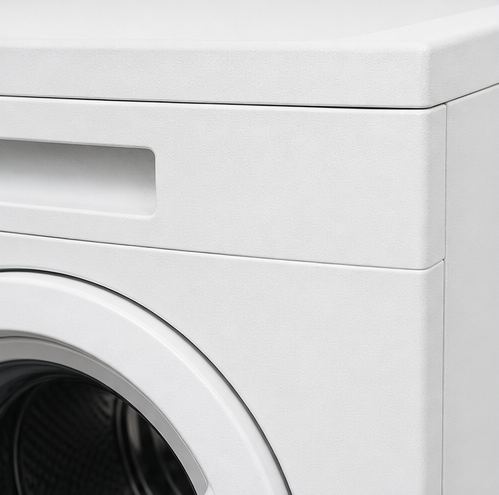

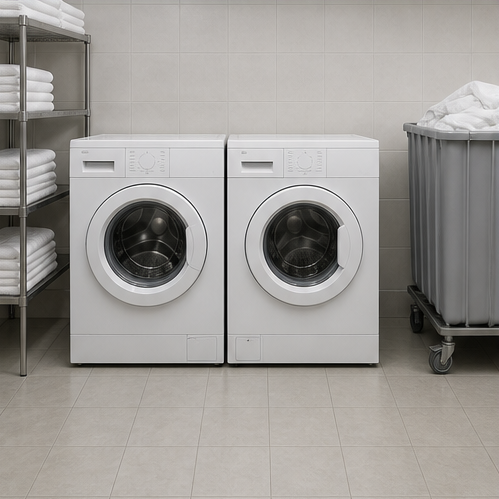

- Furniture and appliances; - Exercise equipment; - Office desks and chairs; - Electrical cabinet and signal cabinet enclosures.

Parameter	Value
Chemistry	Epoxy Polyester Hybrid

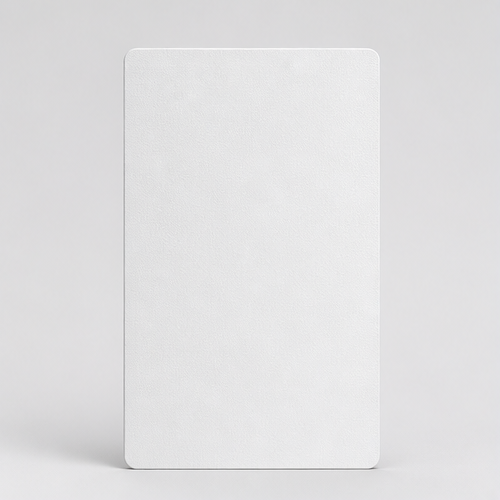

Surface Effect	Low gloss, fine texture
Color Values	LAB: 94.48, -0.56, 0.62 RGB: 239, 239, 238
Gloss at 60°	≤10 GU
Specific Gravity	1.3–1.8 g/cm³, depending on the final product formulation
Particle Size D50	D₅₀: 30–45 μm; adjustable according to the coating application and texture effect
Film Thickness	70–150 μm; higher film thicknesses require verification of colour difference and texture stability

Parameter	Value
Curing Conditions	200°C × 10 min (workpiece temperature); low-temperature-curing products down to 150°C are available
Application Guidelines	Suitable for manual or automatic electrostatic spray application. Other application methods, such as tribostatic spraying or electrostatic fluidized-bed coating, must be specified in advance.

Test	Result	Standard
Initial Adhesion	Pass, GT0	ISO 2409
Impact Resistance	50 kg·cm, no coating detachment from the substrate under direct impact (except low-gloss products)	GB/T 1732
Conical Bend	5 mm, no visible cracking (except low-gloss products)	ISO 6860
Cupping Test	≥5 mm, no obvious cracking	ISO 1520:2006
Humidity Resistance	480 h, with no blistering, detachment or visible discolouration of the coating	ISO 6270-1
Neutral Salt Spray Resistance	1000 h, with no blistering, detachment or visible discolouration of the coating	ISO 9227
