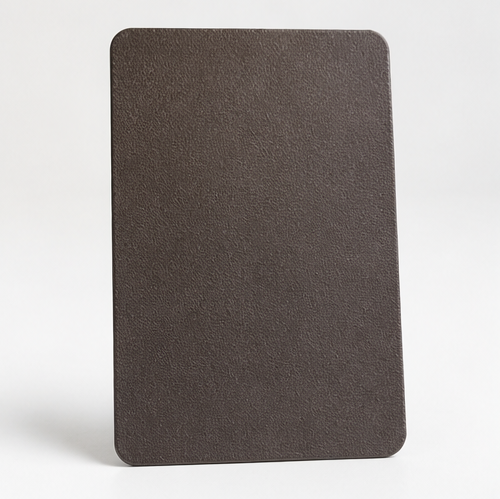

RAL 8019 Fine texture Super Durable Powder Coating
PT2F-600354 · Grey Brown · Polyester-TGIC
- GLOSS
- Ultra Matt 0-10GU
- Measured at 60°
- CURING
- 200°C × 15 min
- Based on object temperature
PRICE PER KG
- 1–300 kg
- on request
- 301–1,000 kg
- on request
- Over 1,000 kg
- on request
All prices are EXW. You pay product price + export charges + ocean freight.
- MOQ
- 100 kg
- LEAD TIME
- 1-7 days
- PAYMENT TERMS
- T/T
- DELIVERY TERMS
- EXW
Product Overview
Description
PT2F is a polyester-TGIC textured powder coating designed for applications requiring long-term outdoor weathering durability and a fine-textured finish, with an outdoor durability rating of 11–18 years. The product can meet relevant requirements such as AAMA 2604 and GB/T 5237.4-2017 (Class II). Conventional sand-textured formulations may be subject to PFAS restrictions and should be confirmed according to specific project requirements.
Key Features
- Fine and coarse sand-textured effects;
- excellent weathering and corrosion resistance;
- exportable to the United States and most other countries and regions;
- good hiding effect and high coating yield.
Best Suited For

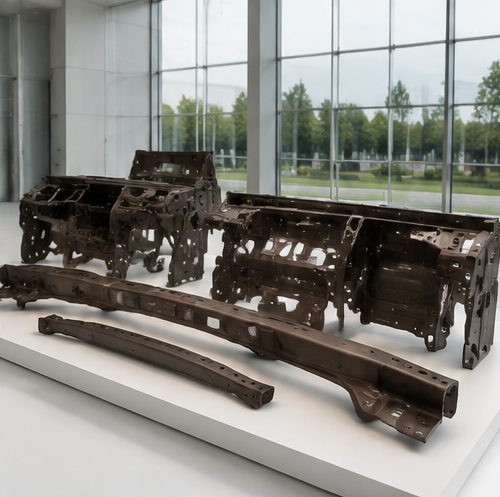

- Metal curtain walls and high-end aluminium profile panels;
- Outdoor energy-storage equipment;
- Automotive exterior and interior parts;
- EV charging-station housings.
- Packaging
- 20kg or 25kg / box, in cardboard box lined with a polyethylene plastic bag
- Storage
- Store sealed below 25°C ,keep cool, dry, and away from sunlight.
- Shelf Life
- 6–12 months when stored under the specified conditions in unopened packaging. The shelf life of the specific product shall prevail.
Appearance & Properties
| Parameter | Value |
|---|---|
| Chemistry | Polyester-TGIC |
| Color Values | LAB: 31.64, 2.59, 1.52 RGB: 80, 73, 72 |
| Gloss at 60° | Sand texture ≤10 GU |
| Specific Gravity | 1.3–1.8 g/cm³, depending on colour and texture |
| Particle Size D50 | D₅₀: 30–45 μm; adjustable according to the coating application and texture |
| Film Thickness | 70–120 μm; high-build application and recoating require verification of texture and intercoat adhesion |
Application & Processing
| Parameter | Value |
|---|---|
| Curing Conditions | 200°C × 15 min (workpiece temperature); low-temperature-curing products can reach a minimum curing temperature of 160°C |
| Application Guidelines | Suitable for manual or automatic electrostatic spray application. Other application methods, such as tribostatic spraying or electrostatic fluidised-bed coating, shall be specified in advance. |
Performance Test Results
| Test | Result | Standard |
|---|---|---|
| Initial Adhesion | Pass, 5B | ASTM D 3359 |
| Impact Resistance | 2.5 N·m, no coating detachment under direct impact | ISO 6272 |
| Hardness | ≥F | ASTM D 3363 |
| Bending | 6 mm, no visible detachment | ISO 1519 |
| Cupping Test | ≥5 mm, no visible cracking | ISO 1520 |
| Humidity Resistance Test (3000 h) | 38°C/100% RH, no visible blistering failure | ASTM D2247 |
| Xenon-Arc Weathering (1000 h) | Class 1.5 high-durability powder: gloss retention ≥75% and colour change within the specified limit; Class 2 super-durable powder: gloss retention ≥90% and colour change within the specified limit | ISO 16474-2 |
| Cyclic Corrosion (1500 h) | Failure rating within the scribed area: ≥7; rating of the unscribed area: 8 | ASTM G85 Appendix A5 |
Documents
Available Documents
Technical Data SheetDownload
Safety Data SheetEnglish DownloadOther Languages Request
Batch COAIssued per batch and provided with shipment
Technical Support
Not sure this product matches your line?
Discuss your substrate, pretreatment and curing conditions with our technical team.
Start a Conversation
