EP0F-700011 · Window Grey · Epoxy
PRICE PER KG
All prices are EXW. You pay product price + export charges + ocean freight.
Description
EP0F is a pure epoxy textured powder coating for indoor applications requiring chemical resistance and corrosion protection. Its low-gloss sand-textured finish helps improve hiding and visual depth where both appearance and protection are required. Through formulation adjustment, the minimum curing temperature can be reduced to 150°C, and resins with different reactivities can be used to meet different coating requirements.
Key Features
Best Suited For
| Parameter | Value |
|---|---|
| Chemistry | Epoxy |

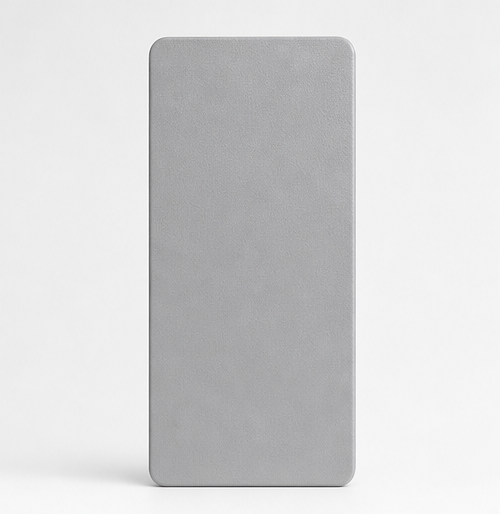

| Surface Effect | Low gloss, fine texture |
| Color Values | LAB: 67.01, -1.11, -2.54 RGB: 159, 164, 168 |
| Gloss at 60° | ≤10 GU |
| Specific Gravity | 1.5–2.3 g/cm³, depending on the final product formulation |
| Particle Size D50 | D₅₀: 30–45 μm; adjustable according to the coating application and texture effect. |
| Film Thickness | 70–150 μm; at higher film thicknesses, colour difference and texture-effect stability shall be verified. |
| Parameter | Value |
|---|---|
| Curing Conditions | 200°C × 10 min (object temperature); low-temperature-curing products down to 150°C can be customised. |
| Application Guidelines | Suitable for manual or automatic electrostatic spray application. Other application methods, such as triboelectric spraying or electrostatic fluidized bed coating, shall be specified in advance. |
| Test | Result | Standard |
|---|---|---|
| Initial adhesion | Pass, GT0 | ISO 2409:2020 |
| Impact Resistance | 50 kg·cm no coating peeling from substrate (forward impact) | GB/T 1732 |
| Cupping test | ≥5 mm, no visible cracking | ISO 1520:2006 |
| Humidity resistance test | 800 h | 85°C / 85% RH |
| Neutral salt spray test, NSS (1000 h) | C2–C3 corrosion protection category | ISO 9227 |
Discuss your substrate, pretreatment and curing conditions with our technical team.
