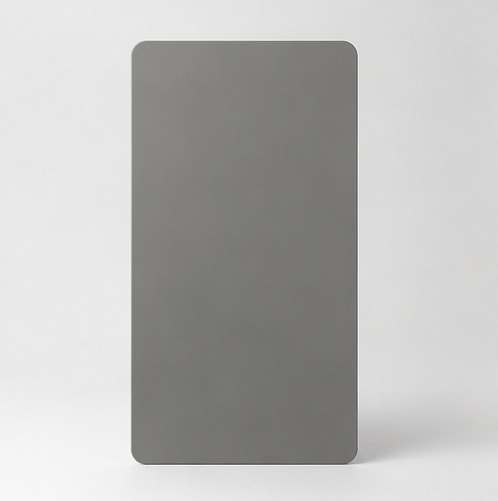

RAL 7037 Smooth Standard Durable Powder Coating
PT0S-710319 · Dusty Grey · Polyester-TGIC
- GLOSS
- Matte 20-40GU
- Measured at 60°
- CURING
- 200°C × 10 min
- Based on object temperature
PRICE PER KG
- 1–300 kg
- on request
- 301–1,000 kg
- on request
- Over 1,000 kg
- on request
All prices are EXW. You pay product price + export charges + ocean freight.
- MOQ
- 100 kg
- LEAD TIME
- 1-7 days
- PAYMENT TERMS
- T/T
- DELIVERY TERMS
- EXW
Product Overview
Description
PT0S is a polyester-TGIC smooth powder coating with a 1–5 year weathering durability rating, designed for general outdoor decorative and protective applications. It is suitable for relevant markets outside Europe. With formulation adjustments, the minimum curing temperature can be reduced to 140°C. Special applications such as food-contact use must be confirmed in advance during the project stage.
Key Features
- Multiple gloss and colour effects available;
- good weathering and corrosion resistance;
- weathering durability of 3–8 years;
- food-contact and other special requirements shall be specified and confirmed in advance.
Best Suited For
- Conventional building panels, aluminium profiles, doors and windows;
- Outdoor railings and lighting equipment;
- Outdoor furniture and leisure facilities;
- Automotive components;
- General construction machinery.
- Packaging
- 20kg or 25kg / box, in cardboard box lined with a polyethylene plastic bag
- Storage
- Store sealed below 25°C ,keep cool, dry, and away from sunlight.
- Shelf Life
- 6–12 months when stored under the specified conditions in unopened packaging. The shelf life of the specific product shall prevail.
Appearance & Properties
| Parameter | Value |
|---|---|
| Chemistry | Polyester-TGIC |
| Color Values | LAB: 55.15, -0.89, 0.26 RGB: 131, 132, 132 |
| Gloss at 60° | Smooth low gloss 10–20 GU; smooth matt 20–40 GU; smooth semi-gloss 40–80 GU; smooth high gloss 80–95 GU |
| Specific Gravity | 1.2–1.8 g/cm³, depending on colour |
| Particle Size D50 | D₅₀: 30–45 μm; adjustable according to the coating application and product design |
| Film Thickness | 60–120 μm; high-build application shall be verified before use |
Application & Processing
| Parameter | Value |
|---|---|
| Curing Conditions | 200°C × 10 min (workpiece temperature); low-temperature-curing versions may reach a minimum curing temperature of 140°C |
| Application Guidelines | Suitable for manual or automatic electrostatic spray application. Other application methods, such as tribostatic spraying or electrostatic fluidised-bed coating, shall be specified in advance. |
Performance Test Results
| Test | Result | Standard |
|---|---|---|
| Initial Adhesion | Pass, Gt 0–1 | ISO 2409 |
| Impact Resistance | 50 Kg·cm without coating peeling (except for positive punching and low gloss products) | GB/T 1732 |
| Hardness | ≥H | ASTM D 3363 |
| Bending | 5 mm, no visible detachment (except low-gloss products) | ISO 1519 |
| Cupping Test | ≥5 mm, no visible cracking | ISO 1520 |
| Humidity Resistance Test (480 h) | No visible blistering or failure due to colour change | ISO 6270-1 |
| Xenon-Arc Weathering (500–800 h) | Gloss retention ≥50%; colour change within the specified limit | ISO 16474-2 |
| Neutral Salt Spray (800–1000 h) | No blistering, detachment or visible colour change | ISO 9227 |
Documents
Available Documents
Technical Data SheetDownload
Safety Data SheetEnglish DownloadOther Languages Request
Batch COAIssued per batch and provided with shipment
