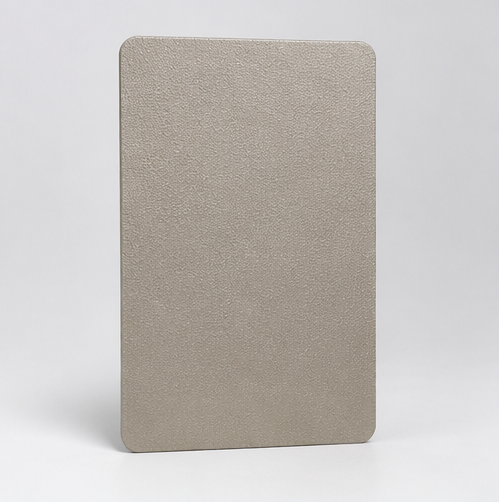

RAL 7030 Fine texture Super Durable Powder Coating

PT2F-700351 · Stone Grey · Polyester-TGIC

GLOSS: Ultra Matt ≤10 GU; Measured at 60°
CURING: 200°C × 15 min; Based on object temperature

PRICE PER KG

1–300 kg: on request
301–1,000 kg: on request
Over 1,000 kg: on request

All prices are EXW. You pay product price + export charges + ocean freight.

MOQ: 100 kg
LEAD TIME: 1-7 days
PAYMENT TERMS: T/T
DELIVERY TERMS: EXW

Product Overview

Description

PT2F is a polyester-TGIC textured powder coating designed for applications requiring long-term outdoor weathering durability and a fine-textured finish, with an outdoor durability rating of 11–18 years. The product can meet relevant requirements such as AAMA 2604 and GB/T 5237.4-2017 (Class II). Conventional sand-textured formulations may be subject to PFAS restrictions and should be confirmed according to specific project requirements.

Key Features

- Fine and coarse sand-textured effects; - excellent weathering and corrosion resistance; - exportable to the United States and most other countries and regions; - good hiding effect and high coating yield.

Best Suited For

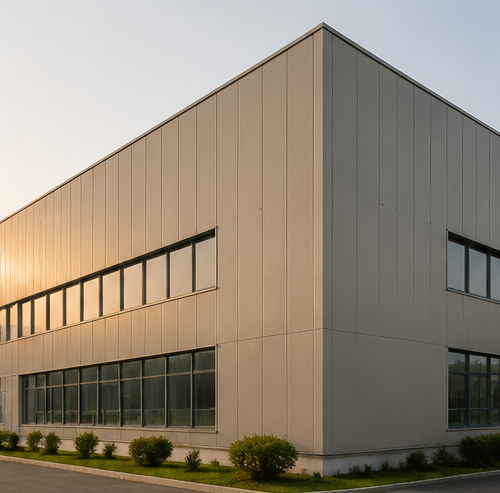

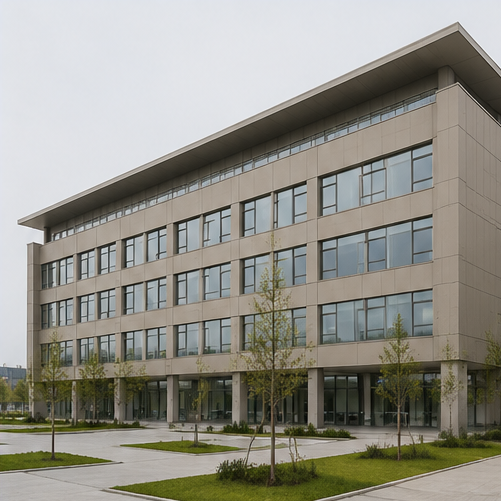

- Metal curtain walls and high-end aluminium profile panels; - Outdoor energy-storage equipment; - Automotive exterior and interior parts; - EV charging-station housings.

Parameter	Value
Chemistry	Polyester-TGIC
Surface Effect	Low gloss, fine texture
Color Values	LAB: 60.35, -0.49, 4.63 RGB: 148, 145, 137
Gloss at 60°	≤10 GU
Specific Gravity	1.3–1.8 g/cm³, depending on the final product formulation
Particle Size D50	D₅₀: 30–45 μm; adjustable according to the coating application and texture
Film Thickness	70–120 μm; high-build application and recoating require verification of texture and intercoat adhesion

Parameter	Value
Curing Conditions	200°C × 15 min (workpiece temperature); low-temperature-curing products can reach a minimum curing temperature of 160°C
Application Guidelines	Suitable for manual or automatic electrostatic spray application. Other application methods, such as tribostatic spraying or electrostatic fluidised-bed coating, shall be specified in advance.

Test	Result	Standard
Initial Adhesion	Pass, 5B	ASTM D 3359
Hardness	≥F	ASTM D 3363
Bending	6 mm, no visible detachment	ISO 1519
Cupping Test	≥5 mm, no visible cracking	ISO 1520
Humidity Resistance Test (3000 h)	38°C/100% RH, no visible blistering failure	ASTM D2247
Xenon-Arc Weathering (1000 h)	Class 1.5 high-durability powder: gloss retention ≥75% and colour change within the specified limit; Class 2 super-durable powder: gloss retention ≥90% and colour change within the specified limit	ISO 16474-2
Cyclic Corrosion (1500 h)	Failure rating within the scribed area: ≥7; rating of the unscribed area: 8	ASTM G85 Appendix A5
