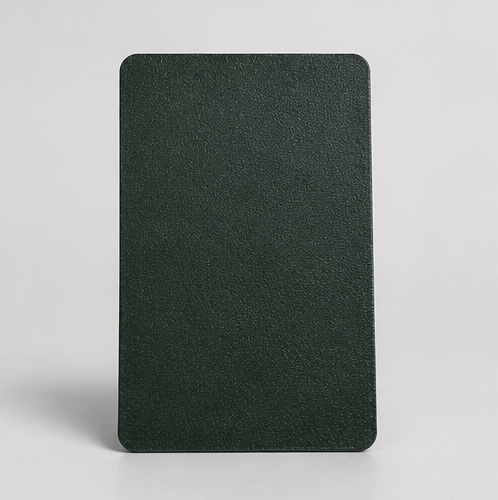

PP1F-500167 · Fir Green · Polyester-HAA
PRICE PER KG
All prices are EXW. You pay product price + export charges + ocean freight.
Description
PP1F is a polyester-HAA fine-textured powder coating designed for high-durability outdoor decorative and protective applications on metal substrates. It is suitable for applications requiring 6–10 years of outdoor weathering durability, with performance comparable to Qualicoat Class 1 and GB/T 5237.4-2017 (Class I) requirements. The minimum curing temperature can be as low as 160°C. The formulation is TGIC-free, complies with applicable REACH restrictions, and is suitable for markets including Europe and other relevant countries and regions. Conventional sand-textured products may involve PFAS restrictions; PFAS-compliant options should be confirmed separately.
Key Features
Best Suited For
| Parameter | Value |
|---|---|
| Chemistry | Polyester-HAA |

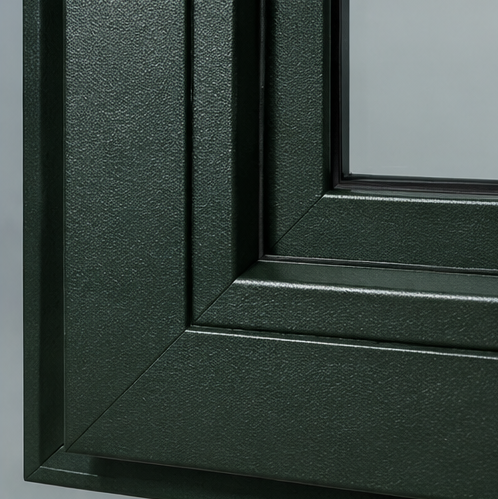

| Surface Effect | Low gloss, fine texture |
| Color Values | LAB: 29.78, -4.92, 3.09 RGB: 64, 72, 65 |
| Gloss at 60° | ≤10 GU |
| Specific Gravity | 1.3–1.8 g/cm³, depending on the final product formulation |
| Particle Size D50 | D50: 30–45 μm; adjustable according to the application and required texture |
| Film Thickness | 70–120 μm; heavy-film and recoating applications require verification of texture appearance and intercoat adhesion |
| Parameter | Value |
|---|---|
| Curing Conditions | 200°C for 10 minutes, based on actual metal temperature; products curing down to 160°C are available |
| Application Guidelines | This series is suitable for manual or automatic electrostatic spray guns.Other application methods, including triboelectric spraying and electrostatic fluidized-bed coating, should be specified in advance. |
| Test | Result | Standard |
|---|---|---|
| Initial adhesion | Pass, Gt 0–1 | ISO 2409 |
| Impact resistance | 2.5 N·m; no coating detachment from the substrate under direct impact | ISO 6272 |
| Pencil hardness | ≥F, depending on the specific product | ASTM D3363 |
| Bend resistance | 5 mm; no visible coating detachment | ISO 1519 |
| Cupping resistance | ≥5 mm; no visible cracking | ISO 1520 |
| Condensation humidity resistance, 1,000 h, with 1 mm cross-cut damage | Blistering ≤S2; corrosion from the damaged area ≤1 mm on each side | ISO 6270-2 / ISO 4628-2 |
| Xenon-arc weathering, 1,000 h | Gloss retention ≥50%; colour change within the specified limit | ISO 16474-2 |
| Acetic acid salt spray, AASS, 1,000 h, with 1 mm scribe | Blistering ≤S2; corrosion from the scribe ≤4 mm on each side | ISO 9227 / ISO 4628-2 |
Discuss your substrate, pretreatment and curing conditions with our technical team.
