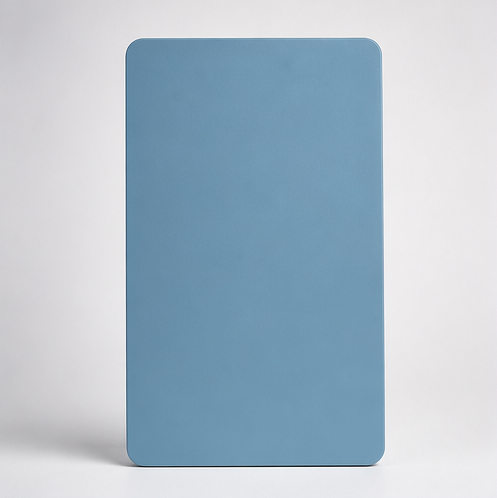

RAL 5024 Smooth Interior Powder Coating
HY0S-410113 · Pastel Blue · Epoxy Polyester Hybrid
- GLOSS
- Matte 20-40GU
- Measured at 60°
- CURING
- 200°C × 10 min
- Based on object temperature
PRICE PER KG
- 1–300 kg
- on request
- 301–1,000 kg
- on request
- Over 1,000 kg
- on request
All prices are EXW. You pay product price + export charges + ocean freight.
- MOQ
- 100 kg
- LEAD TIME
- 1-7 days
- PAYMENT TERMS
- T/T
- DELIVERY TERMS
- EXW
Product Overview
Description
HY0S is an epoxy/polyester hybrid smooth powder coating for indoor decorative-protective coating systems and cost-sensitive applications. It combines smooth surface appearance, chemical resistance and process adaptability across a broad gloss range, supporting efficient line setup under suitable coating conditions.
Key Features
- Multiple gloss and colour effects available;
- good chemical and corrosion resistance;
- good smoothness and decorative appearance;
- good powder application and coverage; cost-control advantages.
Best Suited For
- Furniture and appliances;
- Exercise equipment;
- Office desks and chairs;
- Indoor metal shelving;
- Radiators; automotive functional components such as springs, brake pads and filters.
- Packaging
- 20kg or 25kg / box, in cardboard box lined with a polyethylene plastic bag
- Storage
- Store sealed below 25°C ,keep cool, dry, and away from sunlight.
- Shelf Life
- 6–12 months under the specified storage conditions in unopened packaging. The actual product specification shall apply.
Appearance & Properties
| Parameter | Value |
|---|---|
| Chemistry | Epoxy Polyester Hybrid |
| Color Values | LAB: 60.54, -9, -17.42 RGB: 107, 152, 176 |
| Gloss at 60° | Smooth low gloss: 8–20 GU; smooth matt: 20–40 GU; smooth medium gloss: 40–80 GU; smooth high gloss: 80–95 GU |
| Specific Gravity | 1.2–1.8 g/cm³, depending on colour |
| Particle Size D50 | D₅₀: 30–45 μm; adjustable according to the coating application and product design |
| Film Thickness | 60–150 μm; higher film thicknesses require verification of pinholing and colour-difference stability |
Application & Processing
| Parameter | Value |
|---|---|
| Curing Conditions | 200°C × 10 min (workpiece temperature); low-temperature-curing products down to 150°C can be customized |
| Application Guidelines | Suitable for manual or automatic electrostatic spray application. Other application methods, such as tribostatic spraying or electrostatic fluidized-bed coating, must be specified in advance. |
Performance Test Results
| Test | Result | Standard |
|---|---|---|
| Initial Adhesion | Pass, GT0 | ISO 2409 |
| Impact Resistance | 50 Kg·cm without coating peeling (except for positive punching and low gloss products) | GB/T 1732 |
| Conical Bend | 5 mm, no visible cracking (except low-gloss products) | ISO 6860 |
| Cupping Test | ≥5 mm, no visible cracking | ISO 1520 |
| Humidity Resistance | 480 h, with no blistering, detachment or visible discolouration of the coating | ISO 6270-1 |
| Neutral Salt Spray Resistance | 1000 h, with no blistering, detachment or visible discolouration of the coating | ISO 9227 |
Documents
Available Documents
Technical Data SheetDownload
Safety Data SheetEnglish DownloadOther Languages Request
Batch COAIssued per batch and provided with shipment
Technical Support
Not sure this product matches your line?
Discuss your substrate, pretreatment and curing conditions with our technical team.
Start a Conversation
