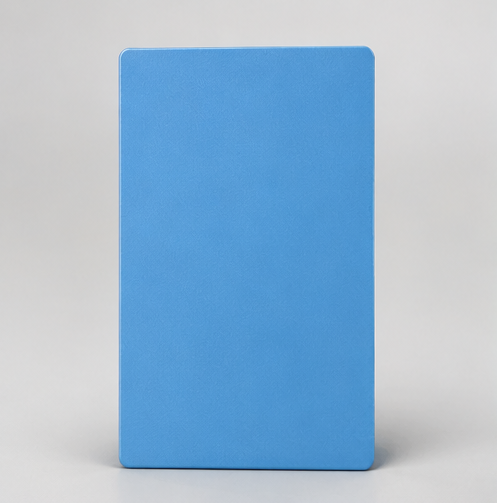

RAL 5012 Smooth Interior Powder Coating

EP0S-410030 · Light Blue · Epoxy

GLOSS: Matte 30–40 GU; Measured at 60°
CURING: 200°C × 10 min; Based on object temperature

PRICE PER KG

1–300 kg: on request
301–1,000 kg: on request
Over 1,000 kg: on request

All prices are EXW. You pay product price + export charges + ocean freight.

MOQ: 100 kg
LEAD TIME: 1-7 days
PAYMENT TERMS: T/T
DELIVERY TERMS: EXW

Product Overview

Description

EP0S is a pure epoxy smooth powder coating for high-corrosion-protection primers and high-build coating requirements. It can be applied by electrostatic spraying or fluidized-bed dip coating and can be built up through multiple coats. Through formulation adjustment, the minimum curing temperature can be reduced to 120°C; when used with a polyester topcoat, the system can meet ISO 12944-6 C4–C5 corrosion-protection categories.

Key Features

- Multiple gloss and colour effects available; - chemical and corrosion resistance; - good edge coverage; good compatibility with topcoats; - good powder deposition and coverage.

Best Suited For

- Automotive functional components, such as brake pads, engines and springs; - Corrosion protection of steel structures; - Transformers; - Anticorrosive primers for outdoor construction machinery and energy-storage cabinets; - Internal and external surfaces of metal pipelines; - Metal structural components.

Parameter	Value
Chemistry	Epoxy
Surface Effect	smooth matt
Color Values	LAB: 54.92, -11.96, -31.18 RGB: 47, 140, 185
Gloss at 60°	30–40 GU
Specific Gravity	1.5–2.3 g/cm³, depending on the final product formulation
Particle Size D50	D₅₀: 30–45 μm; adjustable according to the coating application and product design.
Film Thickness	60–500 μm; the application method and coating thickness shall be agreed according to the design requirements.

Parameter	Value
Curing Conditions	200°C × 10 min (object temperature); low-temperature-curing products down to 120°C can be customised.
Application Guidelines	Suitable for manual or automatic electrostatic spray application. Other application methods, such as triboelectric spraying or electrostatic fluidized bed coating, shall be specified in advance.

Test	Result	Standard
Initial adhesion	Pass, GT0	ISO 2409:2020
Impact resistance	50 kg·cm, no coating detachment under direct impact (except low-gloss products).	GB/T 1732
Hardness	≥H	ISO 15184:2020
Cupping test	≥5 mm, no visible cracking	ISO 1520:2006
Single-layer epoxy coating, NSS (1000 h)	C2–C4 corrosion protection	ISO 9227
Compatible topcoat system	C4–C5 corrosion protection category	ISO 12944-6
85°C / 85% RH test	1000 h	85°C/85%RH
Durability	When used as a primer with a polyester topcoat, up to 15 years of outdoor durability.	—
