RAL 5012 Fine texture Interior Powder Coating
EP0F-400004 · Light Blue · Epoxy
- GLOSS
- Ultra Matt 0-10GU
- Measured at 60°
- CURING
- 200°C × 10 min
- Based on object temperature
PRICE PER KG
- 1–300 kg
- on request
- 301–1,000 kg
- on request
- Over 1,000 kg
- on request
All prices are EXW. You pay product price + export charges + ocean freight.
- MOQ
- 100 kg
- LEAD TIME
- 3-7 days
- PAYMENT TERMS
- T/T
- DELIVERY TERMS
- EXW
Product Overview
Description
EP0F is a pure epoxy textured powder coating for indoor applications requiring chemical resistance and corrosion protection. Its low-gloss sand-textured finish helps improve hiding and visual depth where both appearance and protection are required. Through formulation adjustment, the minimum curing temperature can be reduced to 120°C, and resins with different reactivities can be used to meet different coating requirements.
Key Features

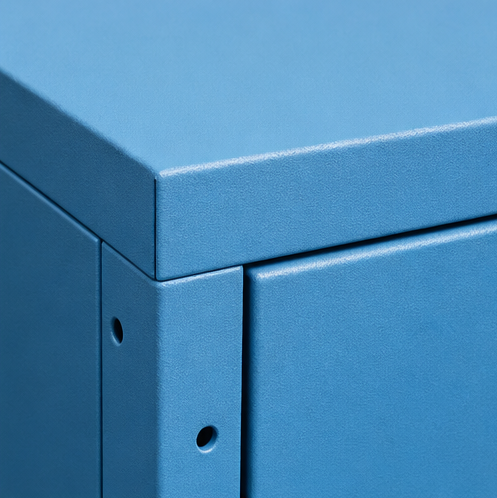

- Sand-textured decorative finish;
- chemical and corrosion resistance;
- matt appearance with a pronounced three-dimensional effect;
- good surface-masking effect and high coating yield.
Best Suited For
- Automotive functional components, such as brake pads and filters;

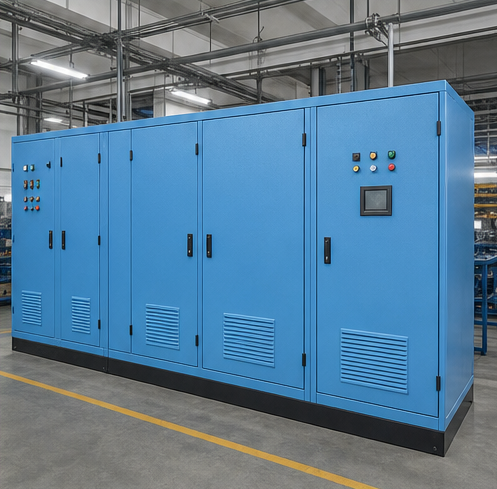

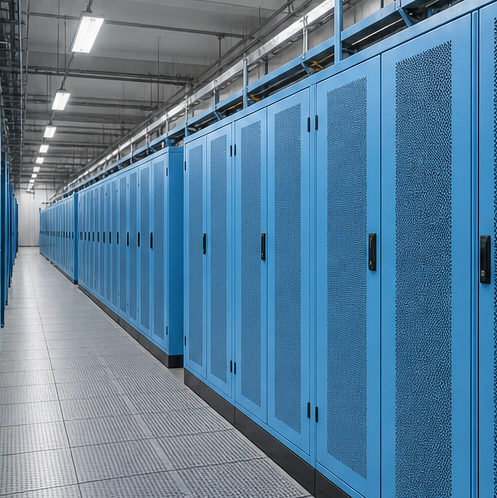

- Electrical cabinets and signal cabinet enclosures;
- Indoor fitness equipment;
- Indoor household appliances and furniture.
- Packaging
- 20kg or 25kg / box, in cardboard box lined with a polyethylene plastic bag
- Storage
- Store sealed below 25°C ,keep cool, dry, and away from sunlight.
- Shelf Life
- 6–12 months under the specified storage conditions in unopened packaging,
Appearance & Properties
| Parameter | Value |
|---|---|
| Chemistry | Epoxy |
| Surface Effect | Low gloss, fine texture |
| Color Values | LAB: 54.92, -11.96, -31.18 RGB: 47, 140, 185 |
| Gloss at 60° | Textured finish ≤10 GU; |
| Specific Gravity | 1.5–2.3 g/cm³, depending on colour and texture effect. |
| Particle Size D50 | D₅₀: 30–45 μm; adjustable according to the coating application and texture effect. |
| Film Thickness | 70–150 μm; at higher film thicknesses, colour difference and texture-effect stability shall be verified. |
Application & Processing
| Parameter | Value |
|---|---|
| Curing Conditions | 200°C × 10 min (object temperature); low-temperature-curing products down to 150°C can be customised. |
| Application Guidelines | Suitable for manual or automatic electrostatic spray application. Other application methods, such as triboelectric spraying or electrostatic fluidized bed coating, shall be specified in advance. |
Performance Test Results
| Test | Result | Standard |
|---|---|---|
| Initial adhesion | Pass, GT0 | ISO 2409:2020 |
| Cupping test | ≥5 mm, no visible cracking | ISO 1520:2006 |
| Humidity resistance test | 800 h | 85°C / 85% RH |
| Neutral salt spray test, NSS (1000 h) | C2–C3 corrosion protection category | ISO 9227 |
| Impact Resistance | 50 kg·cm no coating peeling from substrate (forward impact) | GB/T 1732 |
Documents
Available Documents
Technical Data SheetDownload
Safety Data SheetEnglish DownloadOther Languages Request
Batch COAIssued per batch and provided with shipment
