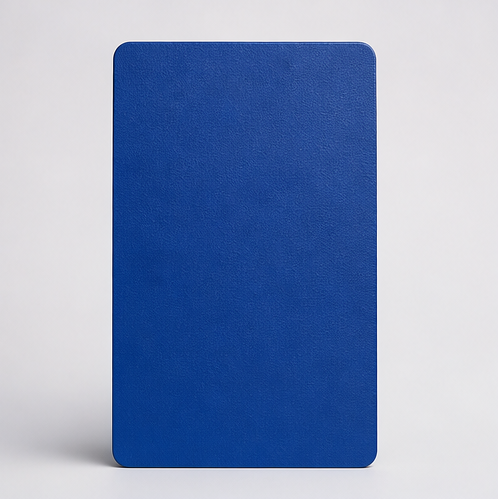

RAL 5005 Fine texture Interior Powder Coating
HY0F-400090 · Signal Blue · Epoxy Polyester Hybrid
- GLOSS
- Ultra Matt 0-10GU
- Measured at 60°
- CURING
- 200°C × 10 min
- Based on object temperature
PRICE PER KG
- 1–300 kg
- on request
- 301–1,000 kg
- on request
- Over 1,000 kg
- on request
All prices are EXW. You pay product price + export charges + ocean freight.
- MOQ
- 100 kg
- LEAD TIME
- 1-7 days
- PAYMENT TERMS
- T/T
- DELIVERY TERMS
- EXW
Product Overview
Description
HY0F is an epoxy/polyester hybrid interior textured powder coating positioned for low-gloss sand-textured appearance and hiding-oriented decorative coating. It combines chemical resistance, corrosion resistance, a three-dimensional matt appearance, hiding capability and coating yield. The curing temperature can be reduced to 150°C, making it suitable for interior coating programs requiring a sand-textured finish and rapid line setup.
Key Features

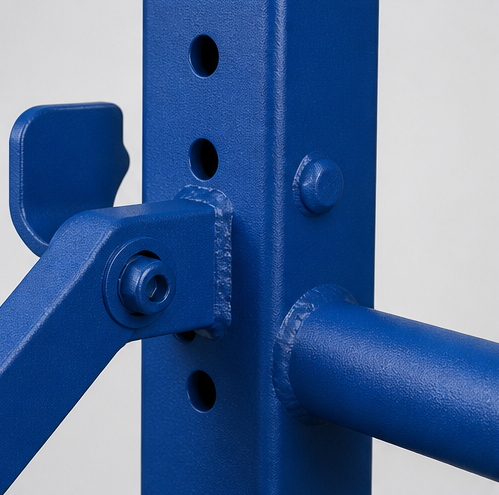

- Sand-textured decorative effect;
- good chemical and corrosion resistance;
- matt appearance with a pronounced three-dimensional effect;
- good hiding capability; high coating yield.
Best Suited For
- Furniture and appliances;
- Exercise equipment;
- Office desks and chairs;
- Electrical cabinet and signal cabinet enclosures.
- Packaging
- 20kg or 25kg / box, in cardboard box lined with a polyethylene plastic bag
- Storage
- Store sealed below 25°C ,keep cool, dry, and away from sunlight.
- Shelf Life
- 6–12 months under the specified storage conditions in unopened packaging. The actual product specification shall apply.
Appearance & Properties
| Parameter | Value |
|---|---|
| Chemistry | Epoxy Polyester Hybrid |
| Color Values | LAB: 37.55, -3.67, -33.41 RGB: 9, 93, 142 |
| Gloss at 60° | Sand texture ≤10 GU |
| Specific Gravity | 1.3–1.8 g/cm³, depending on colour and texture effect |
| Particle Size D50 | D₅₀: 30–45 μm; adjustable according to the coating application and texture effect |
| Film Thickness | 70–150 μm; higher film thicknesses require verification of colour difference and texture stability |
Application & Processing
| Parameter | Value |
|---|---|
| Curing Conditions | 200°C × 10 min (workpiece temperature); low-temperature-curing products down to 150°C are available |
| Application Guidelines | Suitable for manual or automatic electrostatic spray application. Other application methods, such as tribostatic spraying or electrostatic fluidized-bed coating, must be specified in advance. |
Performance Test Results
| Test | Result | Standard |
|---|---|---|
| Initial Adhesion | Pass, GT0 | ISO 2409 |
| Impact Resistance | 50 kg·cm, no coating detachment from the substrate under direct impact (except low-gloss products) | GB/T 1732 |
| Conical Bend | 5 mm, no visible cracking (except low-gloss products) | ISO 6860 |
| Cupping Test | ≥5 mm, no obvious cracking | ISO 1520:2006 |
| Humidity Resistance | 480 h, with no blistering, detachment or visible discolouration of the coating | ISO 6270-1 |
| Neutral Salt Spray Resistance | 1000 h, with no blistering, detachment or visible discolouration of the coating | ISO 9227 |
Documents
Available Documents
Technical Data SheetDownload
Safety Data SheetEnglish DownloadOther Languages Request
Batch COAIssued per batch and provided with shipment
Technical Support
Not sure this product matches your line?
Discuss your substrate, pretreatment and curing conditions with our technical team.
