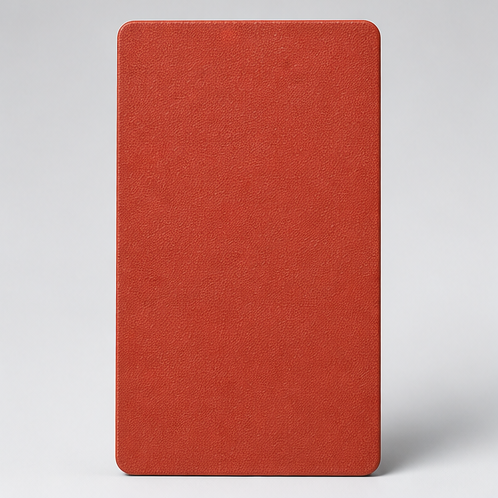

RAL 3016 Fine texture Standard Durable Powder Coating
PT0F-300273 · Coral Red · Polyester-TGIC
- GLOSS
- Ultra Matt 0-10GU
- Measured at 60°
- CURING
- 200°C × 10 min
- Based on object temperature
PRICE PER KG
- 1–300 kg
- on request
- 301–1,000 kg
- on request
- Over 1,000 kg
- on request
All prices are EXW. You pay product price + export charges + ocean freight.
- MOQ
- 100 kg
- LEAD TIME
- 1-7 days
- PAYMENT TERMS
- T/T
- DELIVERY TERMS
- EXW
Product Overview
Description
PT0F is a polyester-TGIC fine-textured powder coating for general industrial exterior decorative protection. It is a TGIC-based system intended for markets outside Europe, with weathering durability of 1–5 years and low-temperature curing down to 140°C through formulation adjustment. Conventional sand-textured products may contain PFAS-restricted substances, so target-market regulatory requirements should be checked.
Key Features
- Fine and coarse sand-textured decorative effects;
- good weathering and corrosion resistance;
- stable matt appearance;
- good hiding effect and high coating yield;
- weathering durability of 3–8 years.
Best Suited For
- Energy-storage cabinets, electrical cabinets and equipment housings;
- Outdoor furniture;
- Outdoor railings and lighting equipment;
- Smart logistics racking;
- Packaging
- 20kg or 25kg / box, in cardboard box lined with a polyethylene plastic bag
- Storage
- Store sealed below 25°C ,keep cool, dry, and away from sunlight.
- Shelf Life
- 6–12 months when stored under the specified conditions in unopened packaging. The shelf life of the specific product shall prevail.
Appearance & Properties
| Parameter | Value |
|---|---|
| Chemistry | Polyester-TGIC |
| Color Values | LAB: 45.31, 38.29, 25.48 RGB: 173, 78, 67 |
| Gloss at 60° | Sand texture ≤10 GU |
| Specific Gravity | 1.3–1.8 g/cm³, depending on colour and texture |
| Particle Size D50 | D₅₀: 30–45 μm; adjustable by application and texture |
| Film Thickness | 70–120 μm; recoating requires verification of texture and intercoat adhesion |
Application & Processing
| Parameter | Value |
|---|---|
| Curing Conditions | 200°C × 10 min (workpiece temperature); minimum 160°C low-temperature curing available |
| Application Guidelines | Suitable for manual or automatic electrostatic spray application. Other application methods, such as tribostatic spraying or electrostatic fluidised-bed coating, shall be specified in advance. |
Performance Test Results
| Test | Result | Standard |
|---|---|---|
| Initial Adhesion | Pass, Gt 0–1 | ISO 2409 |
| Impact Resistance | 50 kg·cm, no coating detachment under direct impact | GB/T 1732 |
| Hardness | ≥H | ASTM D 3363 |
| Bending | 5 mm, no visible detachment | ISO 1519 |
| Cupping Test | ≥5 mm, no visible cracking | ISO 1520 |
| Humidity Resistance Test (480 h) | No visible blistering or failure due to colour change | ISO 6270-1 |
| Xenon-Arc Weathering (500–800 h) | Gloss retention ≥50%; colour change within the specified limit | ISO 16474-2 |
| Neutral Salt Spray (800–1000 h) | No blistering, detachment or visible colour change | ISO 9227 |
