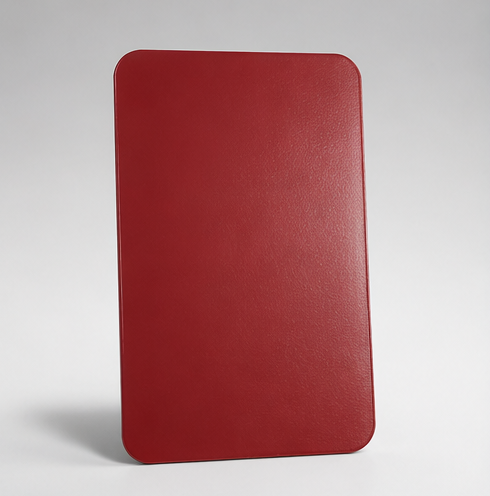

EP0S-320025 · Brown Red · Epoxy
PRICE PER KG
All prices are EXW. You pay product price + export charges + ocean freight.
Description
EP0S is a pure epoxy smooth powder coating for high-corrosion-protection primers and high-build coating requirements. It can be applied by electrostatic spraying or fluidized-bed dip coating and can be built up through multiple coats. Through formulation adjustment, the minimum curing temperature can be reduced to 120°C; when used with a polyester topcoat, the system can meet ISO 12944-6 C4–C5 corrosion-protection categories.
Key Features
Best Suited For
| Parameter | Value |
|---|---|
| Chemistry | Epoxy |
| Surface Effect | smooth medium gloss |
| Color Values | LAB: 35.07, 29.61, 14.47 RGB: 131, 62, 61 |
| Gloss at 60° | 40–80 GU |
| Specific Gravity | 1.5–2.3 g/cm³, depending on the final product formulation |
| Particle Size D50 | D₅₀: 30–45 μm; adjustable according to the coating application and product design. |
| Film Thickness | 60–500 μm; the application method and coating thickness shall be agreed according to the design requirements. |
| Parameter | Value |
|---|---|
| Curing Conditions | 200°C × 10 min (object temperature); low-temperature-curing products down to 120°C can be customised. |
| Application Guidelines | Suitable for manual or automatic electrostatic spray application. Other application methods, such as triboelectric spraying or electrostatic fluidized bed coating, shall be specified in advance. |
| Test | Result | Standard |
|---|---|---|
| Initial adhesion | Pass, GT0 | ISO 2409:2020 |
| Impact resistance | 50 kg·cm, no coating detachment under direct impact (except low-gloss products). | GB/T 1732 |
| Hardness | ≥H | ISO 15184:2020 |
| Cupping test | ≥5 mm, no visible cracking | ISO 1520:2006 |
| Single-layer epoxy coating, NSS (1000 h) | C2–C4 corrosion protection | ISO 9227 |
| Compatible topcoat system | C4–C5 corrosion protection category | ISO 12944-6 |
| 85°C / 85% RH test | 1000 h | 85°C/85%RH |
| Durability | When used as a primer with a polyester topcoat, up to 15 years of outdoor durability. | — |
Discuss your substrate, pretreatment and curing conditions with our technical team.
