RAL 5005 Signal Blue Fine texture Powder Coating
EP0F-400003 · Interior Pure Epoxy
- GLOSS
- Ultra Matt 0-10GU
- CURING
- 200°C × 10 min (object temperature); low-temperature-curing products down to 150°C can be customised.
- KEY FEATURE

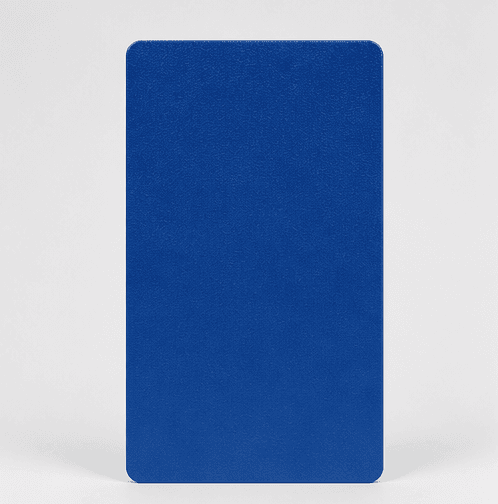

- Sand-textured decorative finish
- LEAD TIME
- 3-7 days
Product Overview
Description
EP0F is a pure epoxy textured powder coating for indoor applications requiring chemical resistance and corrosion protection. Its low-gloss sand-textured finish helps improve hiding and visual depth where both appearance and protection are required. Through formulation adjustment, the minimum curing temperature can be reduced to 120°C, and resins with different reactivities can be used to meet different coating requirements.
Key Features
- Sand-textured decorative finish;
- chemical and corrosion resistance;
- matt appearance with a pronounced three-dimensional effect;
- good surface-masking effect and high coating yield.
Best Suited For
- Automotive functional components, such as brake pads and filters;

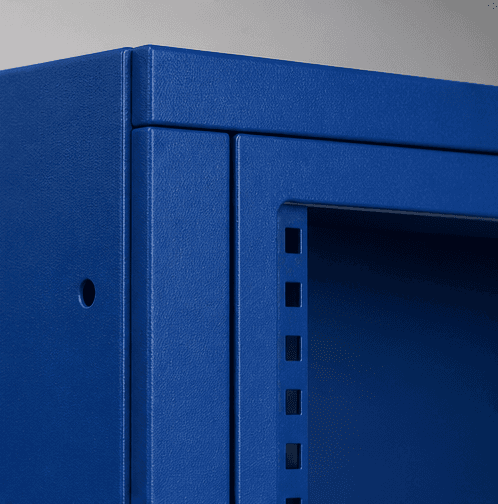

- Electrical cabinets and signal cabinet enclosures;

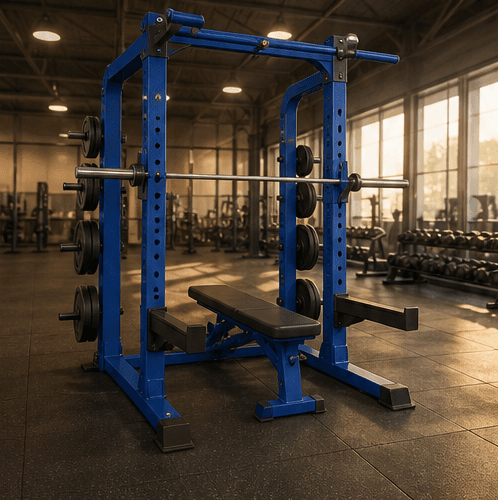

- Indoor fitness equipment;

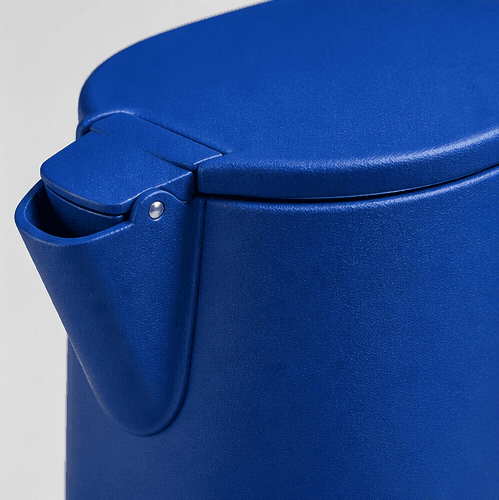

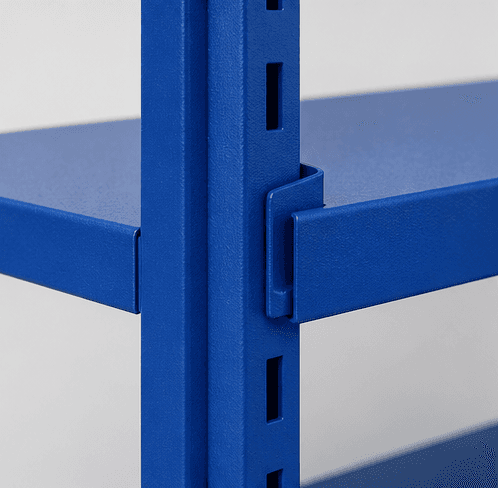

- Indoor household appliances and furniture.
- Packaging
- 20kg or 25kg / box, in cardboard box lined with a polyethylene plastic bag
- Storage
- Store sealed below 25°C ,keep cool, dry, and away from sunlight.
- Shelf Life
- 6–12 months under the specified storage conditions in unopened packaging,
- MOQ
- 100kg
Appearance & Properties
| Parameter | Value |
|---|---|
| Chemistry | Epoxy |
| Surface Effect | Low gloss, fine texture |
| Color Values | LAB: 37.55, -3.67, -33.41 RGB: 9, 93, 142 |
| Gloss at 60° | Textured finish ≤10 GU; |
Application & Processing
| Parameter | Value |
|---|---|
| Curing Conditions | 200°C × 10 min (object temperature); low-temperature-curing products down to 150°C can be customised. |
| Application Guidelines | Suitable for manual or automatic electrostatic spray application. Other application methods, such as triboelectric spraying or electrostatic fluidized bed coating, shall be specified in advance. |
Performance Test Results
| Test | Result | Standard |
|---|---|---|
| Initial adhesion | Pass, GT0 | ISO 2409:2020 |
| Cupping test | ≥5 mm, no visible cracking | ISO 1520:2006 |
| Humidity resistance test | 800 h | 85°C / 85% RH |
| Neutral salt spray test, NSS (1000 h) | C2–C3 corrosion protection category | ISO 9227 |
