RAL 1007 Daffodil Yellow Smooth Powder Coating
PT0S-230288 · General Industrial Exterior Polyester
- GLOSS
- High Gloss ≥80GU
- CURING
- 200°C × 10 min (workpiece temperature); low-temperature-curing versions may reach a minimum curing temperature of 140°C
- KEY FEATURE
- Multiple gloss and colour effects available
- LEAD TIME
- 1-7 days
Product Overview
Description
PT0S is a general industrial exterior polyester-TGIC smooth powder coating for standard outdoor decorative and protective requirements. It is intended for countries and regions outside Europe and provides weathering durability of 3–8 years. Through formulation adjustment, the minimum curing temperature can reach 140°C. Food-contact and other special-use requirements should be confirmed at the project stage.
Key Features
- Multiple gloss and colour effects available;
- good weathering and corrosion resistance;
- weathering durability of 3–8 years;
- food-contact and other special requirements shall be specified and confirmed in advance.
Best Suited For
- Conventional building panels, aluminium profiles, doors and windows;
- Outdoor railings and lighting equipment;
- Outdoor furniture and leisure facilities;

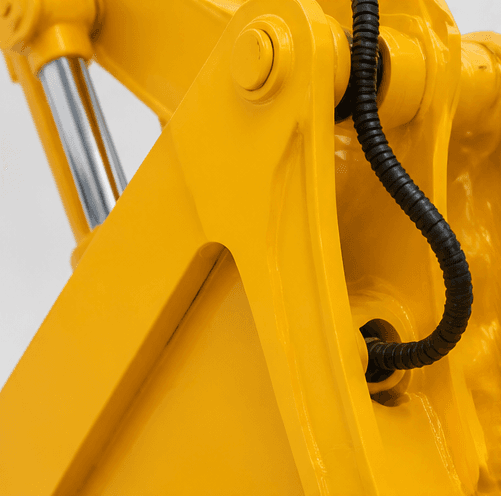

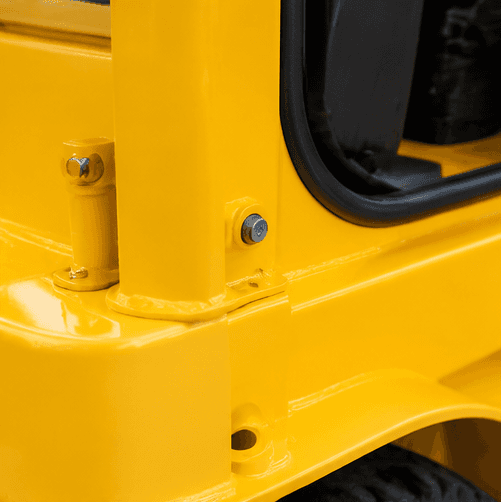

- Automotive components;

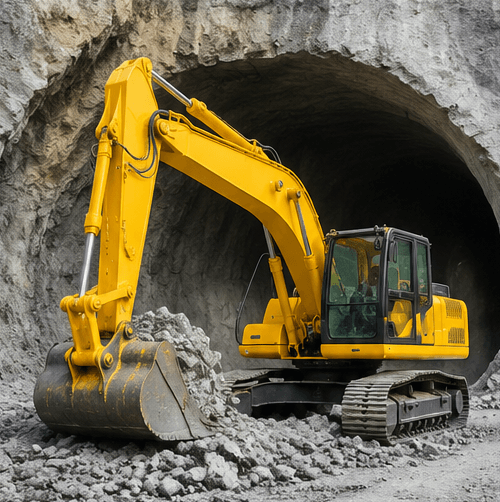

- General construction machinery.
- Packaging
- 20kg or 25kg / box, mcardboard box lined with a polyethylene plastic bag
- Storage
- Store sealed below 25°C ,keep cool, dry, and away from sunlight.
- Shelf Life
- 6–12 months when stored under the specified conditions in unopened packaging. The shelf life of the specific product shall prevail.
- MOQ
- 100kg
Appearance & Properties
| Parameter | Value |
|---|---|
| Chemistry | Polyester-TGIC |
| Color Values | LAB: 68.64, 24.61, 67.9 RGB: 234, 148, 32 |
| Gloss at 60° | Smooth low gloss 10–20 GU; smooth matt 20–40 GU; smooth semi-gloss 40–80 GU; smooth high gloss 80–95 GU |
| Specific Gravity | 1.2–1.8 g/cm³, depending on colour |
Application & Processing
| Parameter | Value |
|---|---|
| Curing Conditions | 200°C × 10 min (workpiece temperature); low-temperature-curing versions may reach a minimum curing temperature of 140°C |
| Application Guidelines | Suitable for manual or automatic electrostatic spray application. Other application methods, such as tribostatic spraying or electrostatic fluidised-bed coating, shall be specified in advance. Trial application is required for new products or changes in process conditions to ensure that the coating film meets the requirements. Customers shall regularly inspect the quality of the applied and cured coating. Test methods shall refer to national standards or company test methods. |
Performance Test Results
| Test | Result | Standard |
|---|---|---|
| Initial Adhesion | Pass, Gt 0–1 | ISO 2409 |
| Impact Resistance | 50 Kg·cm without coating peeling (except for positive punching and low gloss products) | GB/T 1732 |
| Hardness | ≥H | ASTM D 3363 |
| Bending | 5 mm, no visible detachment (except low-gloss products) | ISO 1519 |
