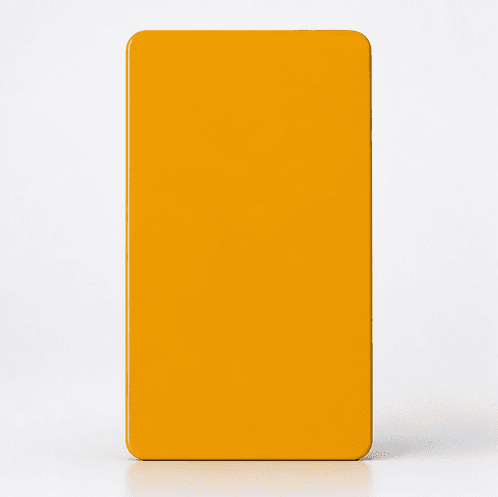

RAL 1007 Daffodil Yellow Smooth Powder Coating
PP1S-230183 · Standard Durable Polyester
- GLOSS
- High Gloss ≥80GU
- CURING
- 200°C × 10 min (workpiece temperature); customised low-temperature-curing products are available with a minimum curing temperature of 160°C
- KEY FEATURE
- TGIC-free
- LEAD TIME
- 1-7 days
Product Overview
Description
PP1S is a polyester-HAA smooth powder coating positioned for standard-durable exterior metal decoration and protection. It is TGIC-free, complies with relevant REACH restrictions and is suitable for markets including Europe. Performance can be developed against Qualicoat Class 1 and GB/T 5237.4-2017 (I), with curing temperatures down to 160°C available through formulation adjustment.
Key Features
- TGIC-free;
- Multiple gloss levels available;
- compliant with relevant REACH restrictions;
- good weathering and corrosion resistance;
- high surface smoothness;
- good hiding power and coating yield.
Best Suited For
- Architectural aluminium profiles, doors and windows;
- Metal panels, outdoor railings and lighting equipment;
- Automotive trim and automotive components;
- Construction machinery.
- Packaging
- 20kg or 25kg / box, mcardboard box lined with a polyethylene plastic bag
- Storage
- Store sealed below 25°C ,keep cool, dry, and away from sunlight.
- Shelf Life
- 6–12 months when stored under the specified conditions in unopened packaging. The shelf life of the specific product shall prevail.
- MOQ
- 100kg
Appearance & Properties
| Parameter | Value |
|---|---|
| Chemistry | Polyester-HAA |
| Color Values | LAB: 68.64, 24.61, 67.9 RGB: 234, 148, 32 |
| Gloss at 60° | Smooth matt 20–40 GU; smooth semi-gloss 40–80 GU; smooth high gloss 80–95 GU |
| Specific Gravity | 1.2–1.8 g/cm³, depending on colour |
Application & Processing
| Parameter | Value |
|---|---|
| Curing Conditions | 200°C × 10 min (workpiece temperature); customised low-temperature-curing products are available with a minimum curing temperature of 160°C |
| Application Guidelines | Suitable for manual or automatic electrostatic spray application. Other application methods, such as tribostatic spraying or electrostatic fluidised-bed coating, shall be specified in advance. Trial application is required for new products or changes in process conditions. Customers shall regularly inspect the quality of the applied and cured coating. Test methods shall refer to national standards or company test methods. |
Performance Test Results
| Test | Result | Standard |
|---|---|---|
| Initial Adhesion | Pass, Gt 0–1 | ISO 2409 |
| Impact Resistance | 2.5 N·m, no coating detachment under direct impact | ISO 6272 |
| Hardness | ≥F (refer to the specific product) | ASTM D 3363 |
| Bending | 5 mm; 8 mm for a two-coat system; no visible detachment | ISO 1519 |
Certification & Compliance
| Compliance Item | Verification | Document |
|---|---|---|
| REACH | Supplier declaration | Request |
Supply & Documents
